GRPO: Group Relative Policy Optimization

import torch
import torch.nn as nn
import torch.nn.functional as F
from transformers import AutoTokenizer, AutoModelForCausalLM
from typing import List, Callable
import numpy as np
import matplotlib.pyplot as plt

# Load a small model for demonstration
model_name = "Qwen/Qwen2.5-0.5B-Instruct"
print(f"Loading {model_name}...")

tokenizer = AutoTokenizer.from_pretrained(model_name)
model = AutoModelForCausalLM.from_pretrained(model_name, dtype="auto")

device = "cuda" if torch.cuda.is_available() else "cpu"
model = model.to(device)

print(f"Loaded on {device}")

def compute_group_advantages(rewards: torch.Tensor, eps: float = 1e-8) -> torch.Tensor:
    """
    Compute group-relative advantages.

    This is the key insight of GRPO: instead of using a learned
    value function, we just normalize rewards within the group.

    Args:
        rewards: Tensor of rewards, shape (group_size,)
        eps: Small constant for numerical stability

    Returns:
        Normalized advantages, shape (group_size,)
    """
    mean = rewards.mean()
    std = rewards.std() + eps
    advantages = (rewards - mean) / std
    return advantages


# Demonstrate with example
rewards = torch.tensor([0.8, 0.3, 0.6, 0.2, 0.7])
advantages = compute_group_advantages(rewards)

print("Group-relative advantages:")
print("="*50)
for i, (r, a) in enumerate(zip(rewards, advantages)):
    sign = "+" if a > 0 else ""
    print(f"  Completion {i+1}: reward={r:.2f} → advantage={sign}{a:.2f}")

print(f"\nMean reward: {rewards.mean():.2f}")
print(f"Completions above mean get positive advantages.")
print(f"Completions below mean get negative advantages.")

def grpo_loss(logprobs: torch.Tensor,
              old_logprobs: torch.Tensor,
              advantages: torch.Tensor,
              clip_ratio: float = 0.2) -> torch.Tensor:
    """
    Compute GRPO loss.

    Similar to PPO's clipped loss, but advantages come from
    group normalization rather than a value function.

    Args:
        logprobs: Log probabilities under current policy
        old_logprobs: Log probabilities under old policy
        advantages: Group-normalized advantages
        clip_ratio: Clipping threshold (like PPO)

    Returns:
        GRPO loss (to minimize)
    """
    # Compute probability ratio
    ratio = torch.exp(logprobs - old_logprobs)

    # Unclipped objective
    unclipped = ratio * advantages

    # Clipped objective
    clipped_ratio = torch.clamp(ratio, 1 - clip_ratio, 1 + clip_ratio)
    clipped = clipped_ratio * advantages

    # Take minimum (pessimistic bound)
    loss = -torch.min(unclipped, clipped).mean()

    return loss


# Test
logprobs = torch.randn(5) - 2
old_logprobs = logprobs + torch.randn(5) * 0.1
advantages = compute_group_advantages(torch.rand(5))

loss = grpo_loss(logprobs, old_logprobs, advantages)
print(f"GRPO loss: {loss.item():.4f}")

import re
import copy

def math_reward_function(prompt: str, completion: str) -> float:
    """
    Simple reward function for math problems.

    Checks if the completion contains the correct answer.
    """
    # Extract correct answer from prompt (assumes format "X + Y = ?")
    match = re.search(r'(\d+)\s*\+\s*(\d+)', prompt)
    if not match:
        return 0.0

    correct = int(match.group(1)) + int(match.group(2))

    # Check if correct answer appears in completion
    if str(correct) in completion:
        return 1.0

    # Partial credit for showing work
    if '+' in completion or 'add' in completion.lower():
        return 0.3

    return 0.0


def generate_completions(model, tokenizer, prompt: str,
                         n: int = 4, max_length: int = 50) -> List[str]:
    """Generate n completions for a prompt."""
    completions = []
    inputs = tokenizer(prompt, return_tensors="pt").to(device)

    for _ in range(n):
        with torch.no_grad():
            outputs = model.generate(
                **inputs,
                max_new_tokens=max_length,
                temperature=0.8,
                do_sample=True,
                pad_token_id=tokenizer.eos_token_id,
            )

        text = tokenizer.decode(outputs[0], skip_special_tokens=True)
        completions.append(text[len(prompt):])

    return completions


# Test
test_prompt = "Calculate: 5 + 7 = "
completions = generate_completions(model, tokenizer, test_prompt, n=4)

print(f"Prompt: {test_prompt}")
print(f"Correct answer: 12\n")

for i, c in enumerate(completions, 1):
    reward = math_reward_function(test_prompt, c)
    print(f"Completion {i}: {c[:40]}...")
    print(f"  Reward: {reward:.1f}")

from typing import Callable  # Ensure Callable is available

def grpo_step(model, ref_model, tokenizer, prompt: str,
              reward_fn: Callable, group_size: int = 4,
              kl_coef: float = 0.1, clip_ratio: float = 0.2):
    """
    One step of GRPO training.

    Args:
        model: The policy model (being trained)
        ref_model: Reference model (for KL penalty)
        tokenizer: The tokenizer
        prompt: Training prompt
        reward_fn: Function that scores completions
        group_size: Number of completions per prompt
        kl_coef: KL divergence coefficient
        clip_ratio: PPO-style clipping

    Returns:
        loss, rewards, advantages
    """
    # 1. Generate group of completions
    completions = generate_completions(model, tokenizer, prompt, n=group_size)

    # 2. Score each completion
    rewards = torch.tensor([reward_fn(prompt, c) for c in completions], device=device)

    # 3. Compute group-relative advantages
    advantages = compute_group_advantages(rewards)

    # 4. Compute log probabilities
    all_logprobs = []
    all_ref_logprobs = []

    for completion in completions:
        full_text = prompt + completion
        inputs = tokenizer(full_text, return_tensors="pt").to(device)
        prompt_len = len(tokenizer(prompt)["input_ids"])

        # Current policy log probs
        with torch.no_grad():
            outputs = model(**inputs)
            logits = outputs.logits[:, prompt_len-1:-1, :]
            labels = inputs["input_ids"][:, prompt_len:]

            log_probs = F.log_softmax(logits, dim=-1)
            token_log_probs = log_probs.gather(-1, labels.unsqueeze(-1)).squeeze(-1)
            all_logprobs.append(token_log_probs.sum())

            # Reference model log probs (for KL)
            ref_outputs = ref_model(**inputs)
            ref_logits = ref_outputs.logits[:, prompt_len-1:-1, :]
            ref_log_probs = F.log_softmax(ref_logits, dim=-1)
            ref_token_log_probs = ref_log_probs.gather(-1, labels.unsqueeze(-1)).squeeze(-1)
            all_ref_logprobs.append(ref_token_log_probs.sum())

    logprobs = torch.stack(all_logprobs)
    ref_logprobs = torch.stack(all_ref_logprobs)

    # 5. Compute GRPO loss
    # Note: In real training, old_logprobs would be from before the update
    # Here we use ref_logprobs as a proxy
    policy_loss = grpo_loss(logprobs, ref_logprobs, advantages, clip_ratio)

    # 6. Add KL penalty
    kl = (logprobs - ref_logprobs).mean()
    total_loss = policy_loss + kl_coef * kl

    return total_loss, rewards, advantages


# Test one GRPO step
ref_model = copy.deepcopy(model)
ref_model.eval()

prompt = "Calculate: 3 + 4 = "
loss, rewards, advantages = grpo_step(
    model, ref_model, tokenizer, prompt,
    reward_fn=math_reward_function,
    group_size=4
)

print(f"GRPO step results:")
print(f"  Loss: {loss.item():.4f}")
print(f"  Rewards: {rewards.tolist()}")
print(f"  Advantages: {[f'{a:.2f}' for a in advantages.tolist()]}")

print(f"\n💡 What's happening here?")
print(f"All rewards are 1.0 because the model already gets the answer right.")
print(f"When all rewards are identical, the advantages all become 0.00.")
print(f"")
print(f"Why? Remember: advantages = (reward - mean) / std")
print(f"  • Mean of [1.0, 1.0, 1.0, 1.0] = 1.0")
print(f"  • Each reward minus mean = 0.0")
print(f"  • So all advantages = 0.0")
print(f"")
print(f"Translation: When all completions are equally good (or equally bad),")
print(f"there's nothing to learn! GRPO only updates when there are differences.")
print(f"")
print(f"Try a harder problem where the model makes mistakes, and you'll see")
print(f"positive advantages for correct answers, negative for wrong ones.")

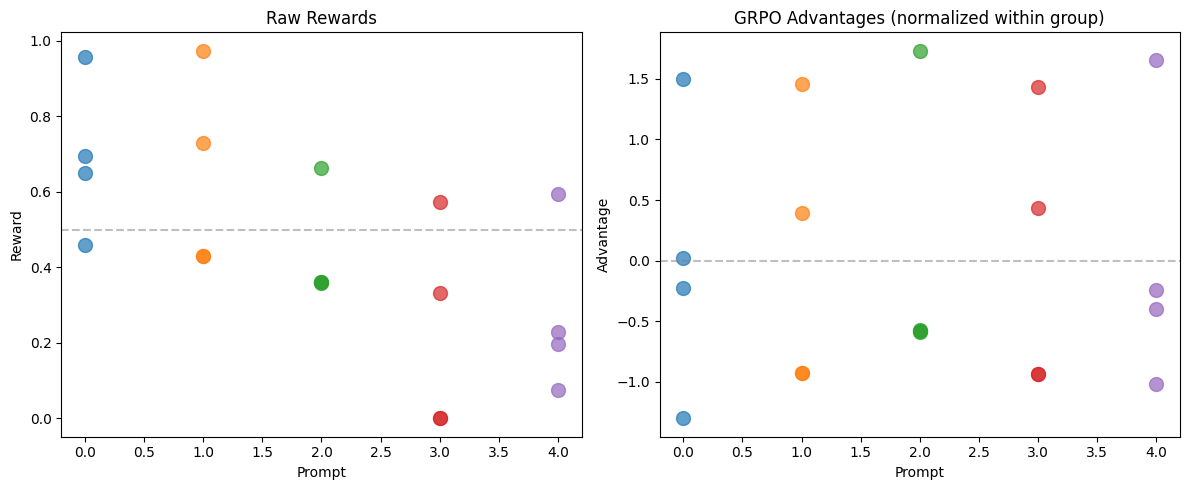

# Visualize group normalization vs. PPO advantage
np.random.seed(42)

# Simulate rewards for 5 prompts, 4 completions each
n_prompts = 5
group_size = 4

all_rewards = np.random.randn(n_prompts, group_size) * 0.3 + 0.5
all_rewards = np.clip(all_rewards, 0, 1)

# GRPO: Normalize within each group
grpo_advantages = np.zeros_like(all_rewards)
for i in range(n_prompts):
    group = all_rewards[i]
    grpo_advantages[i] = (group - group.mean()) / (group.std() + 1e-8)

# Visualize
fig, axes = plt.subplots(1, 2, figsize=(12, 5))

# Raw rewards
ax = axes[0]
for i in range(n_prompts):
    ax.scatter([i]*group_size, all_rewards[i], s=100, alpha=0.7, label=f'Prompt {i+1}' if i == 0 else '')
ax.axhline(y=0.5, color='gray', linestyle='--', alpha=0.5)
ax.set_xlabel('Prompt')
ax.set_ylabel('Reward')
ax.set_title('Raw Rewards')

# GRPO advantages
ax = axes[1]
for i in range(n_prompts):
    ax.scatter([i]*group_size, grpo_advantages[i], s=100, alpha=0.7)
ax.axhline(y=0, color='gray', linestyle='--', alpha=0.5)
ax.set_xlabel('Prompt')
ax.set_ylabel('Advantage')
ax.set_title('GRPO Advantages (normalized within group)')

plt.tight_layout()
plt.show()

print("Notice: GRPO advantages are centered at 0 for each group.")
print("This means: no matter the absolute reward level,")
print("we always learn to prefer better completions within the group.")
